Night VisionWiFi Surveillance Camera , Ptz Dome Camera Outdoor White Metal Case

Product Categories
Shenzhen Winbo Digital Co., Ltd.
Contact Now

Night VisionWiFi Surveillance Camera , Ptz Dome Camera Outdoor White Metal Case

  • 1
  • 2

Brand Name : WINBO

Model Number : SAV-CM114

Certification : CE-RED, ROHS

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Per Month

Delivery Time : 3-5 work days

Packaging Details : Neutral Factory BOX

Resolution : 720P/ 1MP

Pan Tilt : Yes

Lens : 4mm fixed lens

Waterproof rate : IP66

Ir distance : 15meters

Color : White

WiFi : WiFi802.11b/g/n

TF Card : Max 128GB

Contact Now

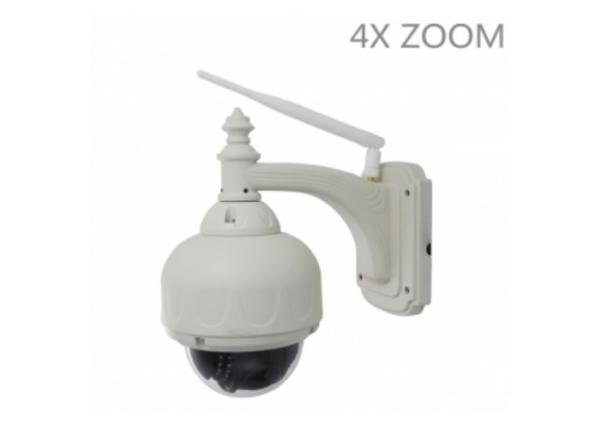

Night Vision Wifi Surveillance IP CCTV PTZ Dome Camera White Metal Case Outdoor

Features

  • High-performance processor, efficient and stable
  • 4mm @ F1.4 Optical power 4x zoom focus lens
  • 720P better picture quality, further vision
  • IP66 super dustproof and waterproof, no matter windy, raining or sand storming
  • Just one network cable, no more wiring, easy to operate
  • ONVIF protocol, enhanced product interoperability
  • Remotwly control camera Pan Tilt Zoom to view any angle you want
  • Multi-stream: 720P/VGA/QVGA
  • Support up to 128G TF card, loop recording.


Specification

System
Operation systemEmbedded Linux OS
Online visitorSupport 4 visitors at the same time
Image Capture
Image sensor1/3.6 inch 720p Progressive Scan CMOS
Minimum Illumination0.3～0.5Lux(Color mode),0Lux(B&W mode)
Lens4.0mm@F2.1
View Angle71.1˚ (diagonal)
Night visionDual Filter,IR-Cut,22pcs 850nm Φ5mm IR LED,
IR radiating distance:8～15m
Video
Encode formatH.264 main profile@level:4.0/Motion-JPEG/JPEG
Three StreamMain Stream:720p(1280X720)@25fps
Sub Stream:360p(640X360)@25fps
Third Stream:180p(320X180)@10fps
Bit Rate128～4096kbps
Maximum frame rate25fps
Image adjustmentContrast,Brightness,Saturation,Hue
Audio
N/A/
Network
Ethernet10Base-T / 100Base-TX, RJ45 connector
ProtocolsTCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc
Wireless LANIEEE802.11b/g/n
Wireless LAN Frequency2.4~ 2.4835GHz
Wireless LAN security64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption
Pan-tilt
Pan-tiltPan:355°,tilt:90°
Preset positionPC APP:support 16 positions, phone: APP:support 5 positions
Memory
SocketTF Push-push socket,Maximum support 128GB
Alarm
Alarm TriggerMotion detection
Physical
Rated voltageDC 5V±5%
Power consumptionRelated power:3.5W(IR LED on), Maximum Power: 7W( Pan &Tilt on)
Environmental
Operating conditionTemperature:-10～50℃,humidity:＜90%
WeightGross:1200g(Note: in kind prevail)
Package size250*170*260mm (L×W×H)



Images

Night VisionWiFi Surveillance Camera , Ptz Dome Camera Outdoor White Metal CaseNight VisionWiFi Surveillance Camera , Ptz Dome Camera Outdoor White Metal CaseNight VisionWiFi Surveillance Camera , Ptz Dome Camera Outdoor White Metal Case
